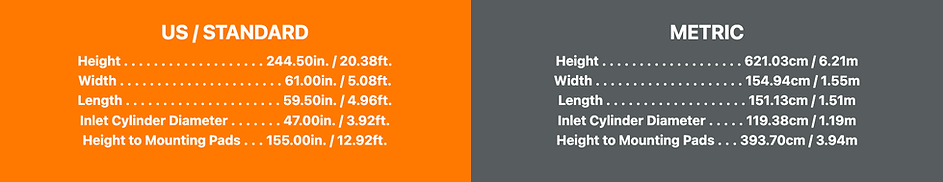

Exact size guide for seamless integration of the HE-47
A closer look at industrial innovation

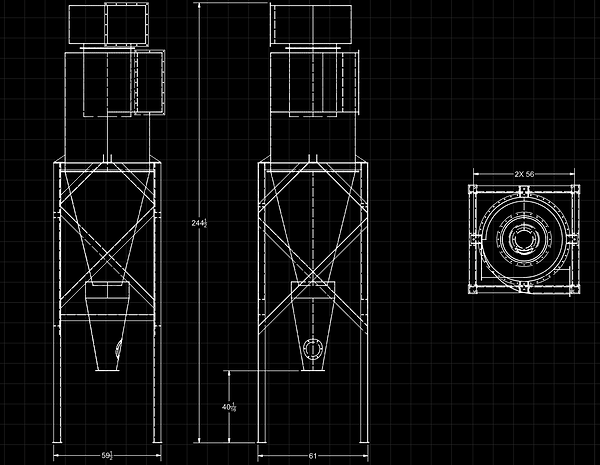

Understand the robust structure and superior craftsmanship behind the HE-47 through detailed blueprints.
Precision-focused design insights.
Experience how the HE-47 cyclone separator is meticulously constructed to deliver uninterrupted performance. Its seamless, no-moving-parts structure minimizes potential failures and extends operational life, making it perfect for continuous industrial environments.
Industrial-strength framing for continuous use.
The HE-47 is designed with industrial-grade framing and strategic cross-supports that enhance durability. This construction ensures the cyclone withstands high operational loads without compromise, providing stability and safety across demanding processes.
Access panels engineered for quick maintenance.
Integrated access panels allow easy entry for internal inspections and clean-outs. This feature significantly cuts down on maintenance time, ensuring that regular servicing doesn't interrupt your workflow or impact productivity.
Customized airflow for your unique requirements.
The HE-47 supports both clockwise and counterclockwise air rotation, giving you the flexibility to match your specific system setup. With adaptable inlet and outlet ducting, this model integrates seamlessly into your existing industrial dust collection framework.
